How We Built the Grid — and What It Looks Like Today
A short history of how America’s most important infrastructure came together — and why it now needs a transformation.
Last time, I wrote about the national energy emergency — a grid under strain from rising demand, aging infrastructure, and the accelerating push toward decarbonization.
But today’s challenges didn’t appear overnight. They’re the result of decisions, innovations, and gaps that have accumulated over more than a century. To understand the pressures we face today, it helps to look backward.
So, let’s break down how we got here — starting at the very beginning.

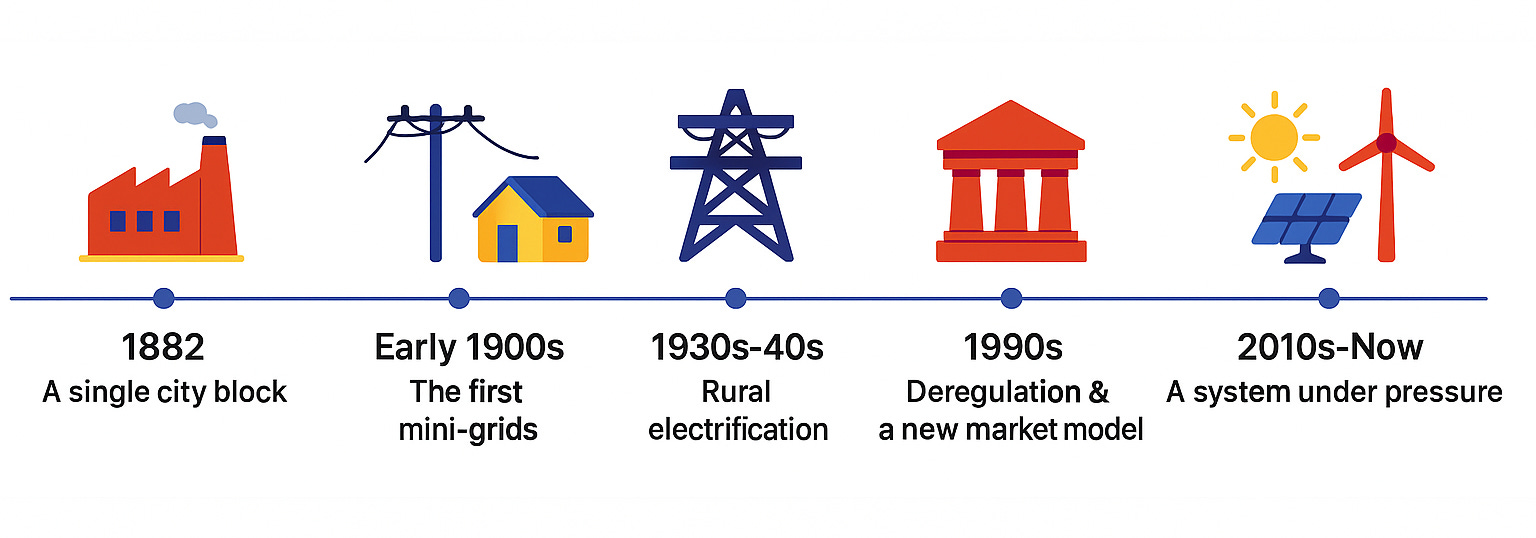

A Brief History of the Grid
The U.S. electric grid wasn’t born fully formed — it grew in fits and starts, driven by invention, private industry, public policy, crisis, and the evolving demands of a growing nation.
1882 – A single city block
Thomas Edison flips the switch at the Pearl Street Station in lower Manhattan, serving 59 customers with direct current (DC) electricity. The wires only reached a few square blocks. Competing systems sprang up in other cities, each isolated and incompatible — a literal patchwork of wires.
Early 1900s – The first mini-grids
Private utilities expand rapidly, stringing wires from centralized plants to local customers. But there was no national vision. Electricity was a luxury in cities, and nonexistent in most rural areas.
1930s–40s – Rural electrification changes the map
President Franklin D. Roosevelt creates the Rural Electrification Administration in 1935 to bring power to farms and small towns. In just ten years, rural electrification jumps from 33% to over 90%, reshaping the American countryside and expanding the reach of the grid.
1940s–50s – Regional consolidation
The postwar boom drives demand. Utilities begin building larger power plants — coal, hydro, early nuclear — and regional transmission lines to serve growing metro areas. Still, there’s no true national grid. Systems operate in “islands,” and interconnections are few.
1960s–70s – The grid scales up
Spurred by suburban growth and industrial expansion, utilities build out high-voltage transmission lines to move power from large coal and nuclear plants to growing demand centers. Regional interconnections take shape. Natural gas starts to gain ground as a flexible, fast-ramping generation source.
1990s – Deregulation and a new market model
Amid concerns over monopolies and inefficiencies, many states begin restructuring their electric markets. Utilities are required to separate generation from transmission and distribution, introducing competition into wholesale power markets. This era gives rise to Independent System Operators (ISOs) and Regional Transmission Organizations (RTOs), which coordinate power flows across multiple utility territories.
2000s – A period of relative stability
The early 2000s marked a lull in grid expansion. With sufficient capacity to meet demand and only modest load growth, utilities focused on maintaining reliability rather than major new infrastructure. While technological change was brewing beneath the surface, this was an era defined more by stability than transformation.
2010s–Now – A system under pressure
Coal declines. Wind and solar surge. Extreme weather causes regional crises — from Texas freezes to California wildfires. The once one-way grid becomes a two-way system, as rooftop solar, EVs, and batteries reshape how electricity flows.
Deep Dive Into Where We Are Now
Over the past century and a half, we built the tightly choreographed chain that delivers electricity directly to your light bulb. What began as a single power plant in downtown NYC has grown into a sprawling, finely tuned system — arguably the most complex machine in North America: the U.S. electric grid.
However, despite the name, today’s grid isn’t a single network. It’s three massive systems — the Eastern Interconnection, the Western Interconnection, and Texas’s ERCOT — that operate independently and are only loosely linked at their edges.

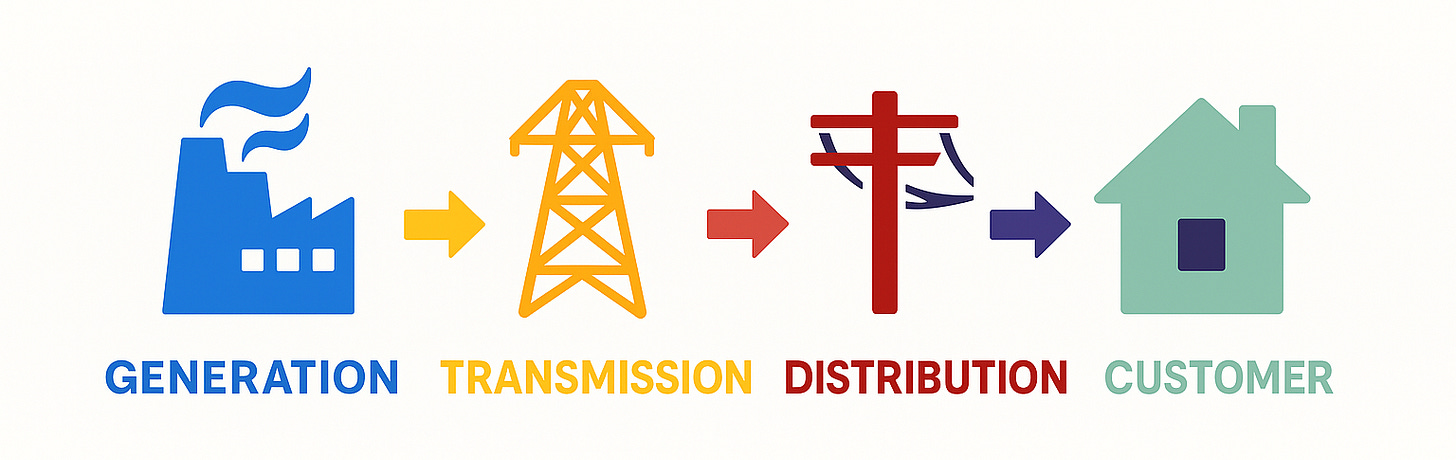

To arrive at your light, electricity flows through a tightly choreographed chain:
🏭 Generation: Where Power Begins
The U.S. generates electricity through a wide array of sources — fossil fuels, nuclear, and renewables — spread across more than 7,300 utility-scale power plants with a total generating capacity of approximately 1,190 gigawatts (GW) as of late 2023.
However, the generation mix is shifting — fast. Here’s how:
Solar is surging. The U.S. is expected to add 49 GW of new solar in 2024 alone — more than any other source. Utility-scale solar leads, but rooftop systems are growing too.
Wind power is scaling up. Onshore wind capacity is around 137 GW, and offshore wind is gaining ground, with a national target of 30 GW by 2030.
Batteries are booming. Energy storage hit 17.4 GW by the end of 2023 — up 73% from the year before — and is on track to double again by 2026.
Natural gas remains dominant — for now. It’s still the largest single source, prized for its flexibility. But it’s facing competition from cheaper renewables and increasing scrutiny over emissions.
Nuclear is getting a second look. Popular opinion on nuclear energy has risen 15 percentage points in the past 15 years to 61% of Americans favoring it. Small modular reactors (SMRs) are particularly growing, and some could come online by the early 2030s if plans progress.
New tech is on the rise. Green hydrogen, enhanced geothermal, long-duration storage, and even wave power are all being tested as potential clean baseload sources.
⚡ Transmission: High-Voltage Highways
Once power is generated, it travels across states on high-voltage lines — the transmission system.
The U.S. has more than 642,000 miles of transmission lines operating at 230 kilovolts or higher. These lines function like high-voltage highways — but with no traffic lights or room for error. Supply and demand must match exactly, every second, or the entire system risks instability.
Transmission is managed by Independent System Operators (ISOs) and Regional Transmission Organizations (RTOs). These entities don’t generate electricity — they coordinate who supplies what, when, and where, based on real-time prices and reliability needs.
In 2023, U.S. utilities invested over $25 billion in the grid, with 90% driven by reliability upgrades and the replacement of aging equipment. Despite billions in investment, just 55 miles of new high-voltage lines were added — a drop in the bucket for a system that needs thousands of miles to meet future demand.
Looking forward, the transmission grid is getting longer, smarter, and more digital:
New high-voltage lines are being planned to carry wind and solar power from remote areas to cities, but permitting remains a bottleneck.
Grid-enhancing technologies (GETs) like dynamic line ratings and advanced power flow controls are helping to unlock existing capacity.
Interregional coordination is improving, albeit slowly — to better share resources across vast distances.
Federal funding is targeting shovel-ready projects that can help integrate clean energy faster. Permitting and siting reform may prove more critical than technology itself — without faster approval processes, the clean energy transition will hit a wall of steel towers and red tape.
🏘 Distribution: The Last Mile
Transmission gets electricity to the city limits. Distribution gets it to your wall outlet.
There are roughly 6.3 million miles of distribution lines in the U.S. They connect power to 160 million customers — homes, businesses, and institutions. Over the last two decades, investment in distribution has jumped by 54%, reaching $51 billion annually, largely for grid upgrades and maintenance.
This is the part of the grid most people see — poles, wires, transformers. But its visibility belies its complexity: it's the most decentralized, fragmented, and technologically uneven part of the entire system. Thousands of utilities maintain their own networks, often with aging equipment, under tight budgets. The result: uneven modernization, slow adoption of new tech, and major coordination challenges.
Recently, though, the edge of the grid is transforming into a two-way system:
Distributed energy resources (DERs) — rooftop solar, home batteries, electric vehicles — are becoming active participants. The U.S. DER market is expected to nearly double, reaching $68 billion per year.
Virtual power plants (VPPs) aggregate DERs to behave like a utility-scale generator, helping shave peaks and fill gaps. A new report finds that 60 gigawatts of VPP deployment could meet future U.S. resource adequacy needs at $15–$35 billion less than the cost of the alternative options over the next decade.
Microgrids are gaining traction, especially for resilience in hospitals, campuses, and remote communities. As of early 2023, the U.S. had 692 microgrids with a total capacity of nearly 4.4 GW.
Smart meters and sensors are being rolled out to give utilities and consumers real-time insight and control.
Why This Matters
The electric grid is one of the most remarkable systems humans have ever built — vast, invisible, and always on. It powers our homes, our industries, our hospitals, and now, increasingly, our cars and digital lives. It's easy to take for granted, but behind every light switch is a dynamic, high-stakes balancing act.
The 2020s are shaping up to be a decade of grid transformation. Electrification of vehicles, heating, and industry is increasing demand. At the same time, federal investments, state mandates, and consumer preferences are pushing a rapid shift toward clean energy. The grid will need to grow, digitize, and modernize — all while staying reliable and affordable.
Understanding how the grid works is the first step to engaging in where it's going. Because the future of energy isn't just about technology — it's about all of us.
